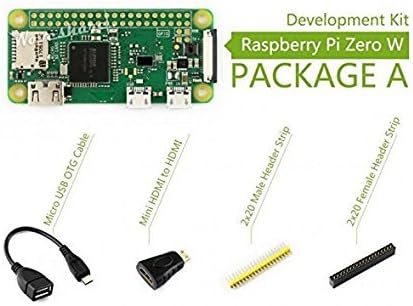

Raspberry Pi Zero W board. New version with built-in WiFi and Bluetooth. Overall dimensions: 65mm x 30mm Ports: SD Card slot, mini HDMI, micro USB (x2), 2x20 (+4) female pins, CSi (camera) socket. You just attach a Raspberry Pi Zero or Zero W to a little box that looks like an old-school Game Boy cartridge and then plug it into the case, which has a 2.8-inch IPS screen, along with a D-pad. The new Pi Zero camera port only works with a Raspberry Pi Zero Camera Cable. It DOES NOT work with a standard Raspberry Pi Camera cable. We also have a budget pack and starter pack with all the essentials to get your Zero up and running. Please note - the Pi Zero is quite minimal and requires a few accessories to turn it into a computer! Regular Raspberry Pi’s have long been used to make clusters and Raspberry Pi based super computers consisting of 100’s – 1000’s of Pi’s. Since the introduction of the Pi Zero with it’s lower price and size, it is possible to put more of them into a small space. Before you can power up your Pi Zero, you will need to program in the SD card with an Operating System Much like your computer has Windows, Mac OS X or Linux on it to make it run, the Raspberry Pi needs something to help it boot and run software. That software is Raspbian Linux (a flavor of Debian Linux). You can check out our tutorial.

Equipped with a wireless LAN and priced at only $10, I see the Raspberry Pi Zero W as a good candidate for a low cost CCTV that I can deploy at my house for surveillance purposes. With the arrival of my Raspberry Pi Zero W and the official case, I could free up the Raspberry Pi 3 that I had been using for home surveillance for other projects.

This post documents how I connect my Raspberry Pi camera module to my Raspberry Pi Zero W and the official case.

Parts to be assembled together for Raspberry Pi Zero W CCTV with official case

In this setup, I have with me the following parts to be assembled together:

Removing the original flex cable from the Raspberry Pi camera module

The camera module comes with a flex cable that will not fit into the CSI camera connector on the Raspberry Pi Zero W. Hence, we will need to remove the flex cable from the camera module. To do so, we pull the black connector downwards as shown in the picture below:

A loosened camera connector will look like the following:

Ssh

With the camera connector loosened, you can then remove the flex cable from the camera module.

Connecting the Raspberry Pi Zero W flex cable to the Raspberry Pi camera module

The camera cable that comes with the Raspberry Pi Zero Official Case looks like this:

We will need to connect the wider end to the Raspberry Pi camera module and push the connector clip back up:

The fastened camera connector looks like this:

Connecting the camera cable to the Raspberry Pi Zero W board

To connect the camera cable to the Raspberry Pi Zero W board, we first loosen the clip of the CSI connector on the board:

The loosened clip will look like this:

With the clip loosened, we can then slot in the camera cable:

Once we slot in the camera cable, we then fastened the CSI connector clip:

Slotting the Raspberry Pi Zero W board into the base of Raspberry Pi Zero Official Case

Once the camera module is connected to the Raspberry Pi Zero W board, we can then proceed to slot in the Raspberry Pi Zero W board into the base of the Raspberry Pi Zero Official case.

Since the base of the Raspberry Pi Zero Official Case does not have a slot for the microSD card to be inserted to the board, we should insert the microSD card into the card reader on the Raspberry Pi Zero W board before slotting the Raspberry Pi Zero W board into the base of the Raspberry Pi Zero Official case.

To slot the Raspberry Pi Zero W board into the base of the Raspberry Pi Zero Official Case, we tilt the board under the catch of the base:

And then push down the other side into the base of the Raspberry Pi Zero Official case. A nicely fitted Raspberry Pi Zero W board will look like this:

Attaching the Raspberry Pi Camera module onto the camera lid of Raspberry Pi Official Case

Once the Raspberry Pi Zero W board is nicely fitted into the base of the Raspberry Pi Zero Official Case, we can then proceed to attach the Raspberry Pi Camera module onto the camera lid of the Raspberry Pi Zero Official Case.

With the Raspberry Pi Zero Board on the right, we sit the camera lid to the left as follows:

And then fit the Raspberry Pi Camera module firmly into the studs and camera hole of the camera lid:

Covering the camera lid to the base of the Raspberry Pi Zero Official Case

Finally, with the Raspberry Pi Camera Module nicely fitted to the camera lid of the Raspberry Pi Zero Official Case, we can then cover the lid to achieve the following:
